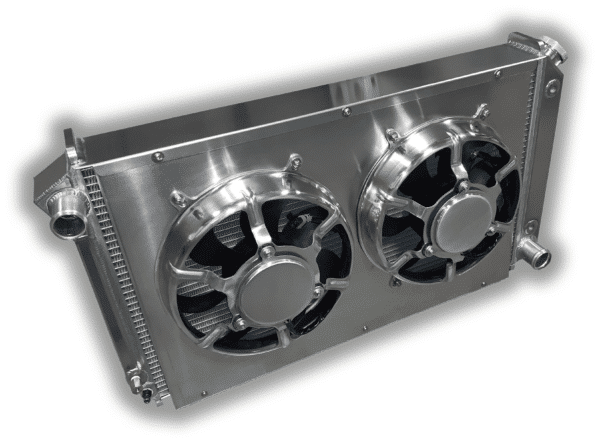

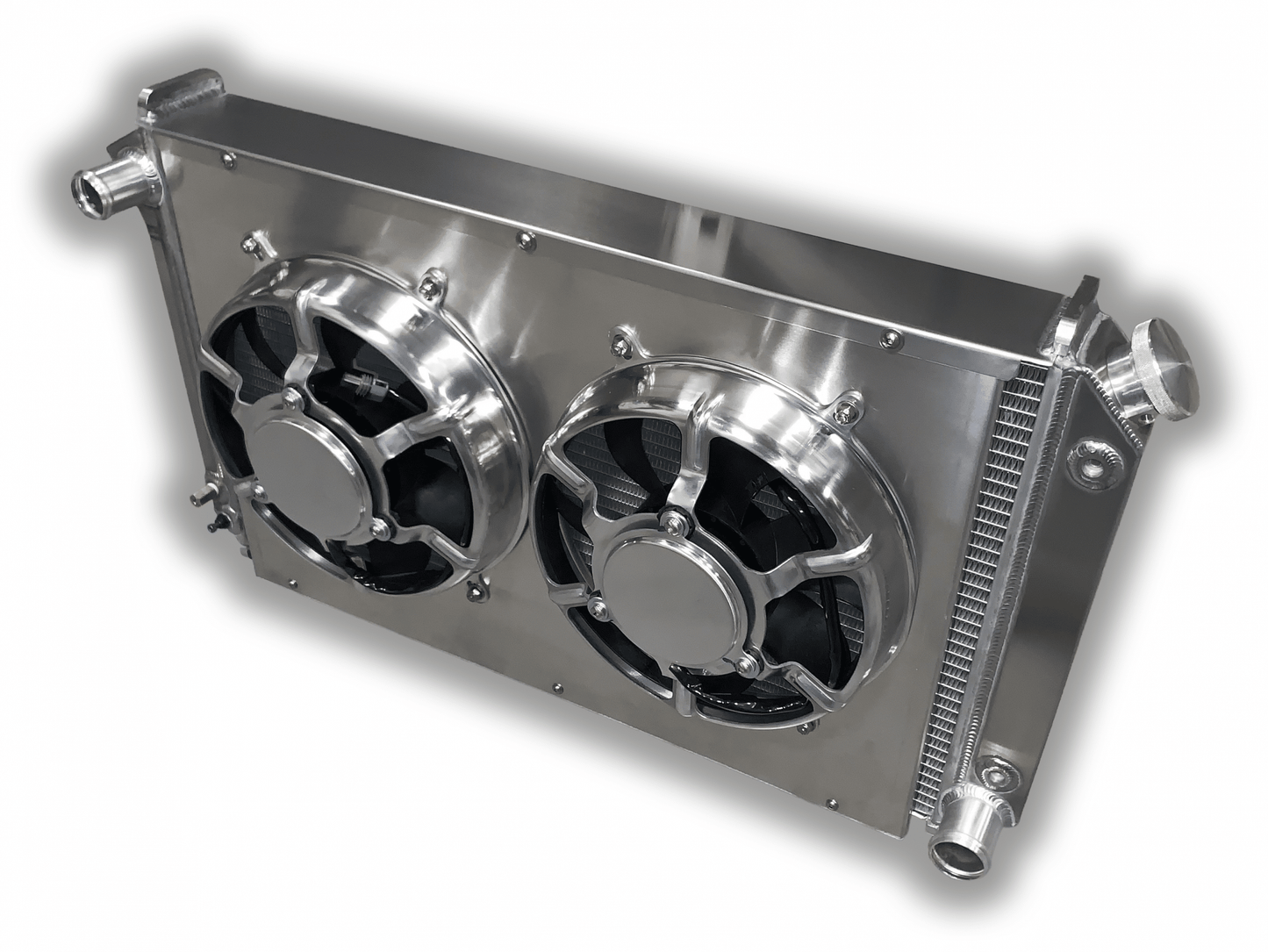

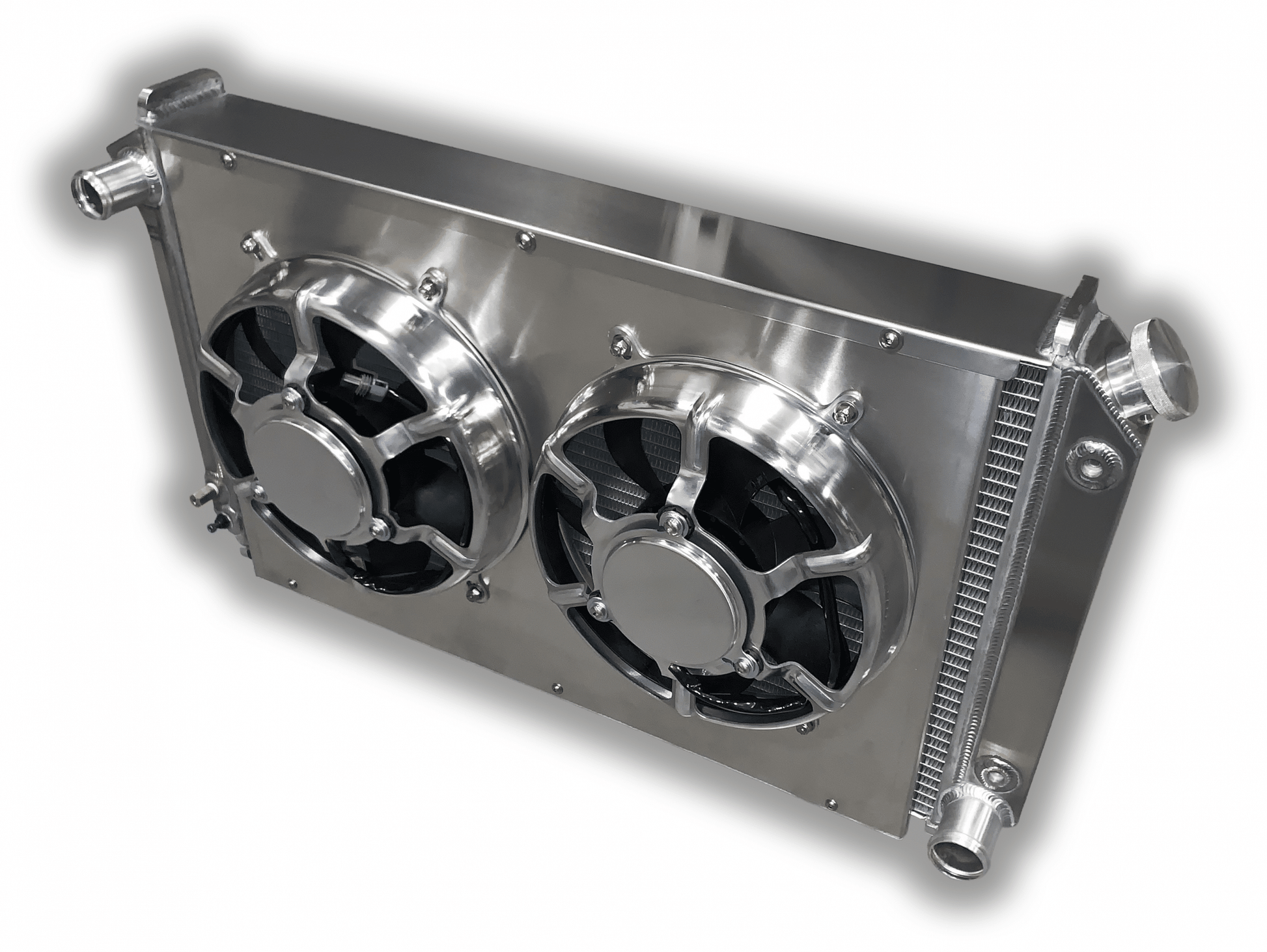

1982 – 1991 Camaro Firebird/TA Aluminum Radiator – Dual HPX Fans

Description

The third gen camaros never quite got the love that their 1st gen older brothers get, however this platform is really making a come back. Especially the later year 87-92 cars, with a few upgrades, the styling on these cars can be brought back to modern times.

Regardless if your Camaro was an original 6 cylinder car or a V8 car, this radiator will fit bolt right into your Camaro. For small block powered cars, it will fit with a v-belt, serpentine drive, long water or short water pump: it will fit with ease.

To keep your Camaro/Firebird running extra cool with killer styling, this Camaro radiator uses our  11″ HPX fans. Completely engineered by us with a die formed aluminum housing, these fans were specially engineered by us to deal with your typical modern day problems: lots of horsepower, tight clearances, Vintage Air and the need for killer styling.

They pull over 1500 CFM each and look KILLER doing it. Not only do they move a ton of CFM, they add modern day styling to your hot rod. CFM alone isn’t the whole story. These fans were designed to keep the CFM from falling off when having to pull through thick cores and A/C condensers at the same time.

Many electric fans are living 30 years in the past and can’t handle the horsepower and A/C requirements of today. These fans will bring your ride into the modern day.

To make everything fit with your Pontiac and billet accessory drive, we specially configure the fans on that model to clear the trouble spots that cause interference problems on big blocks. Typically the power steering pump and the A/C compressor with serpentine systems.

As for cooling power, we rate this model at 100 HP less with a Pontiac motor than with a Chevy motor. The reason behind that is Pontiac motors are very difficult to cool. As much as we love Pontiacs, they are very difficult engines to cool. Therefore, we do not recommend using this model with more than a 500 horsepower Pontiac engine. Especially 400 and 455 motors. For over 500 horsepower Pontiac engines, use our model 9162-HD-1.

Features:

– 2-rows of 1″ cooling tubes

– Cooling power up to 600HP

– Dual 11″ HP fans for a total 3000 CFM

– Precision TIG welded construction

– Lifetime warranty

– Billet CNC machined filler neck

– Heavy duty plate transmission cooler

– Stainless steel hardware

Like all of our radiators, it’s made in the USA. We guarantee you’ll think it’s bad ass and guarantee it to cool your car with ease. And of course our lifetime warranty on everything: radiator and fans.

For fan control, please use our RH-02 plug-and-play wiring harness.
