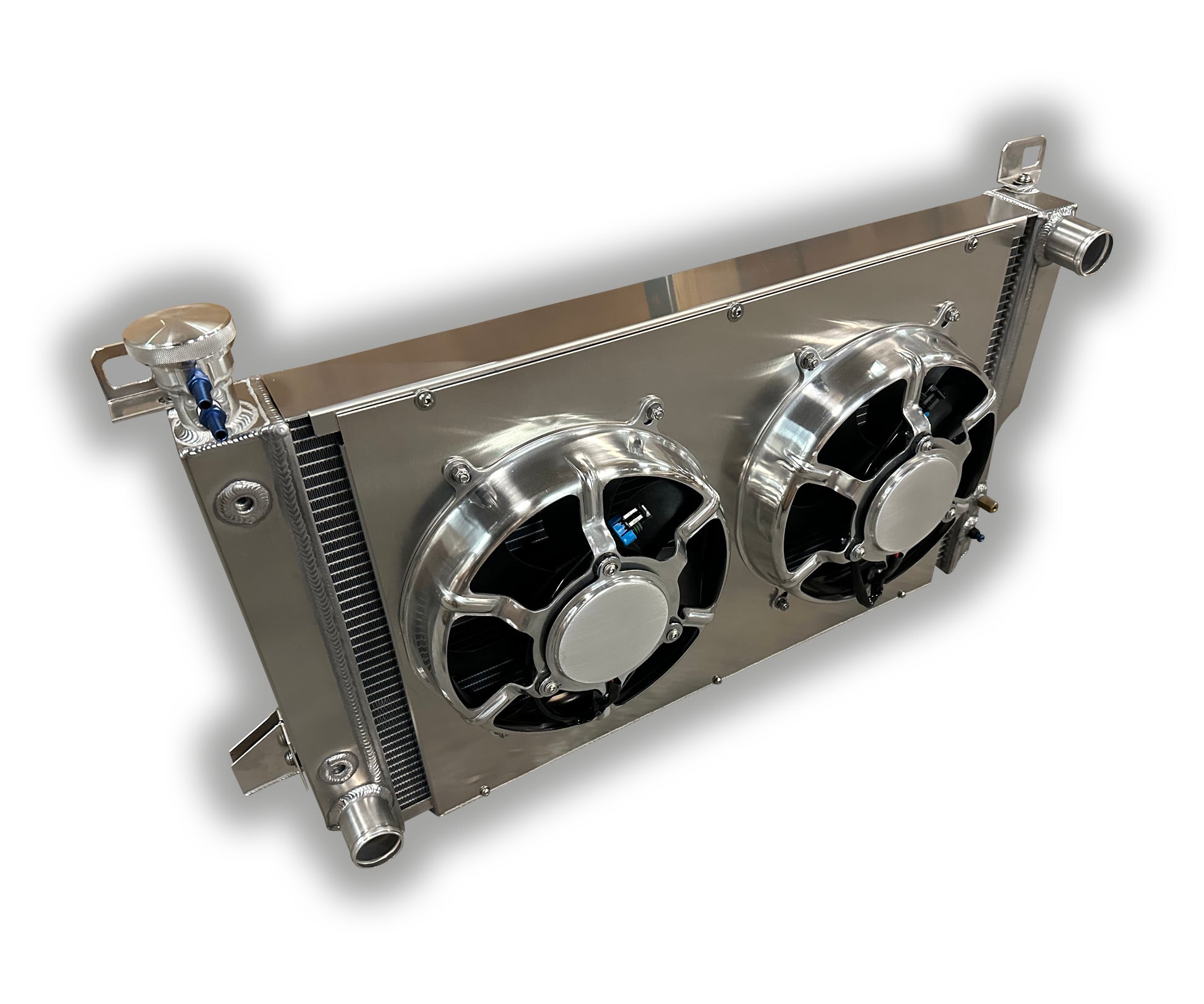

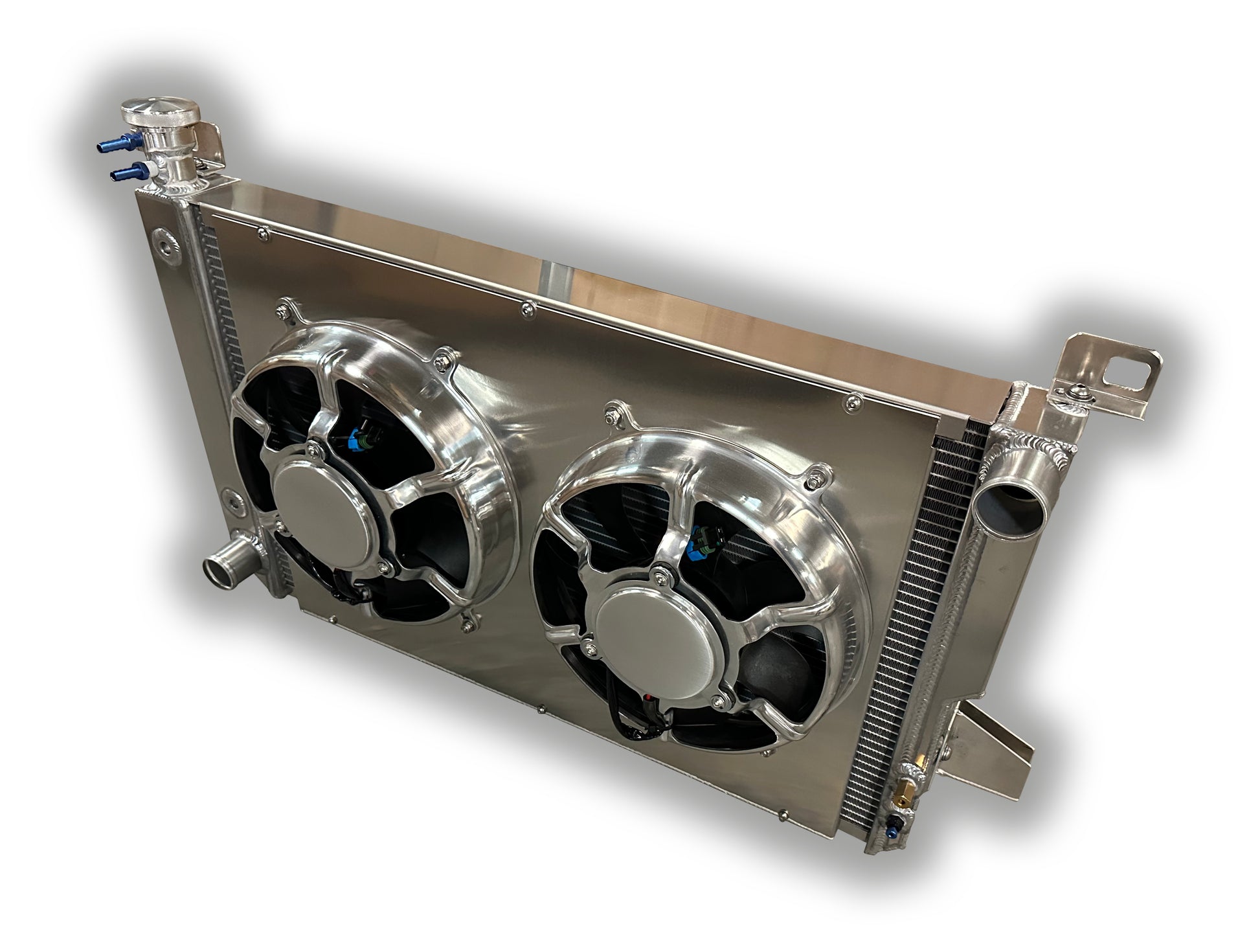

1985 - 1997 Ford F150 Bronco Aluminum Radiator - Dual HPX Fans

Description

It is finally here for your Ford F150 Truck: The drop-in USA made aluminum radiator for your 1985 - 1997 Ford Truck aluminum radiator. This model also fits the OJ era Bronco.

There are a couple of different configurations of this radiator and we can configure it for whatever motor setup you have: 289, 302, 351, 460, Coyote 5.0L, 5.8L and the V10 beast engines. We can also move the hose connections to where ever you need.

Show some pride when you pop the hood on your Ford truck with this expertly hand crafted radiator made by our highly skilled craftsman in Chicago. Not by robots or Chinamen.

- Hand TIG welded to perfection by our veteran craftsman with years of radiator fabrication experience

- Aluminum shroud with high powered dual HPX fans with 3000 CFM combined airflow.

- Heavy duty plate transmission cooler.

- 2-rows of 1.0" cooling tubes.

- Lifetime warranty on everything (fans, wiring, radiator).

- Cooling up to 650 horsepower.

- 3/8" NPT bung installed in the radiator for a temperature switch for fan control.

- Standard hose connections 1-1/2" upper, 1-3/4" lower as shown.

- Guarantee you'll think it's 7000% awesome.

- Overall dimensions 33" wide x 18-1/2 " high over the cap x 7-1/8" deep with the fans

Please give our sales techs a call about any special requirements you have with hose connections (773)669-6573. We are here to build it for you, the way you want it.

Over 600 horsepower, we have our BADASS model available with our 2" tube technology and dual 13" HPX fans for 1000+ horsepower of cooling your Ford truck.

Note: billet cap and wiring sold separately
