Jeep J/K LSX Conversion Aluminum Radiator – Dual HPX Fans

Description

When upgrading your Jeep for any type of off road duty or climbing, especially with low gears, the factory cooling system starts to fall on it’s face.

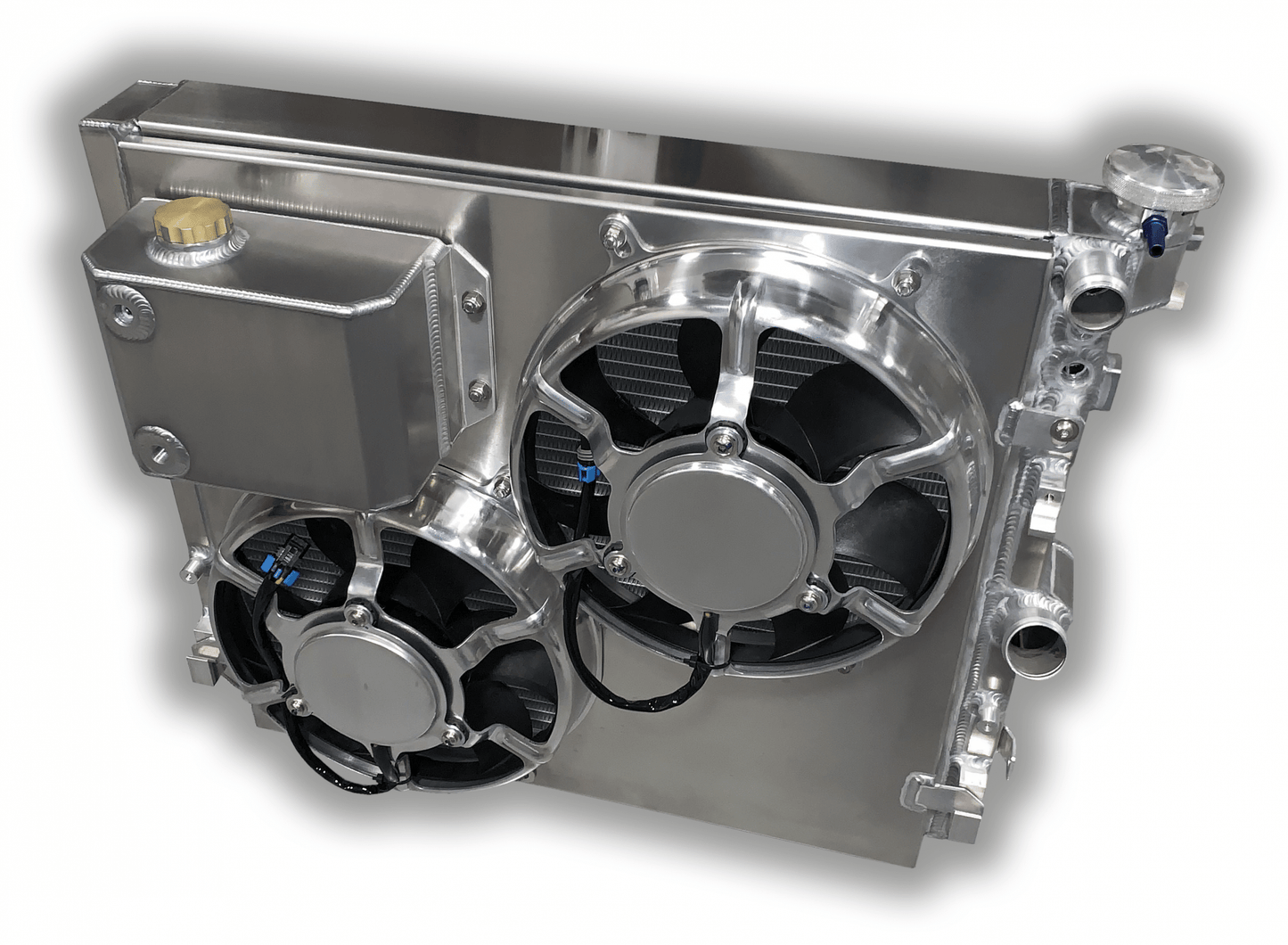

This drop-in LSX conversion radiator for the JK has everything you need to make your LSX swap paint-by-numbers simple. It includes the radiator that bolts in place of the OEM radiator, double-pass construction, dual Entropy HPX 11″ fans and an all aluminum overflow tank.

A couple of key changes we made to the LSX version allow for a much easier swap. Especially when it comes to clearance between the radiator and engine. To maximize much needed space with your LSX swap, we move the radiator to create more space between the engine and radiator.

We’ve been building Jeep radiators for a long time and understand the unique punishment that Jeeps are subject to. Especially with stiff suspensions. When climbing and off-road, everything needs to be capable of withstanding the off-road abuse that makes owning a Jeep so awesome. We use thicker .125″ fully welded brackets, CNC billet mounting brackets for the chassis mounts.

Another common problem unique to Jeeps, and the abuse they take, is the wiring. Overtime a lot of the engine grounds can break and then then coolant becomes the engine ground. This ends up destroying the radiator via electrolysis, which might even be why you’re shopping for a new radiator for your Jeep now.

All of our Jeep radiators feature a EC-02 custom consumable electrode wiring kit. This consumable electrode is installed in the radiator and helps prevent it from failure caused by electrical current flowing through the radiator.

Features:

– 2 rows of 1″ tubes for cooling up to 600 horsepower of cooling

– Our 100% aluminum housing 11″ HPX fans delivering a combined 3000 CFM fan

– Heavy duty 1/8″ mounting brackets

– Precision hand TIG welded 100%

– Billet CNC machined fan mounts, mounting pins and condenser mounts

– Billet CNC machined filler neck

– Lifetime Warranty

Like all of our radiators, it’s made in the USA. We guarantee you’ll think it’s sexy and guarantee it to cool your car with ease. And of course our lifetime warranty on everything: radiator and fans.

Please note billet cap is not included with the radiator, we recommend using our BC-16 cap.
